Name: Air Engineering 2G-385P-1000F Filter Silencer
Availability: BackOrder

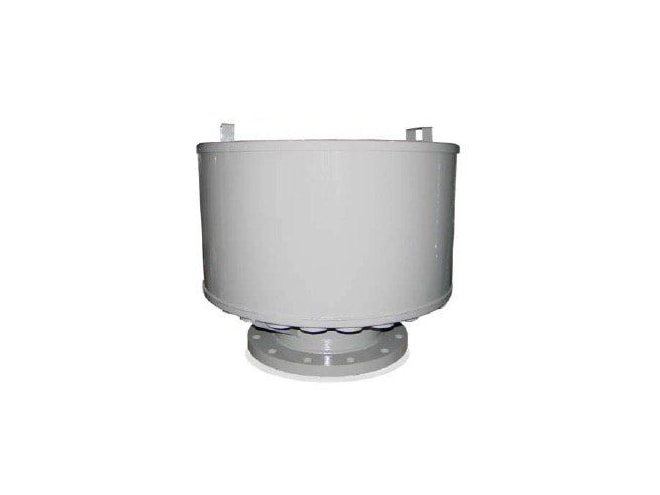

Air Engineering 2G-385P-1000F Filter Silencer — Air Engineering 2G-385P-1000F Big Boy Filter Silencer

Call 508-217-6345 for pricing

Part Number

2G-385P-1000F

Manufactured

By Air Engineering

Availability

Call for availability

Solberg - 2G Series, Big Boy Silencer Filter | 6" - 12"Flange
Premium Grade Silencer Filters, Up to 4700 SCFM

Features

99%+ removal efficiency standard Polyester: 5 microns, Paper: 2 microns

Interchangeable elements

Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)

Filter change out differential: 10"-15" in. H2O above initial delta P

Pressure drop graphs available upon request

Low pressure drop center bracket and outlet pipe design

Durable carbon steel construction with baked enamel finish

A) Overall cost of the blower package is dramatically lowered

B) Differentiate your package from "traditional"

C) The number of costly components in a system are reduced; shrinking the footprint

E) Power comsumption (amp draw) is reduced allowing for increased performance and lower pressure drop is achieved with the removal of unnecessary components

D) Material, handling, labor & freight costs are minimized

Multiple silencing features: Tubes are positioned to maximize attenuation and air flow; Quiet band weatherhood utilizes sound suppression in the its' design; Internal Silencer, Center tubular silencer w/layered absorptive media

Applications

Ash Handling

Blowers-Side Channel

Cement

Compressor-Piston

Compressor-Screw

Dock Controls

Hydraulic Breathers - fine filtration

Pneumatic Conveying Systems

Power Plants

Sparging

Waste Water Aeration
