Bulk Loaded Demo Brand C-L350L-5012L-X Hose & Reel

Name: Bulk Loaded Demo Brand C-L350L-5012L-X Hose & Reel
Availability: BackOrder

Cox Reels 3/8" x 50' C-Series 12 GA. Less Hose, Cord & Acc.| Air/Electric | C-L350L-5012L-X.

Call 508-217-6345 for pricing

Part Number

C-L350L-5012L-X

Manufactured

Availability

Call for availability

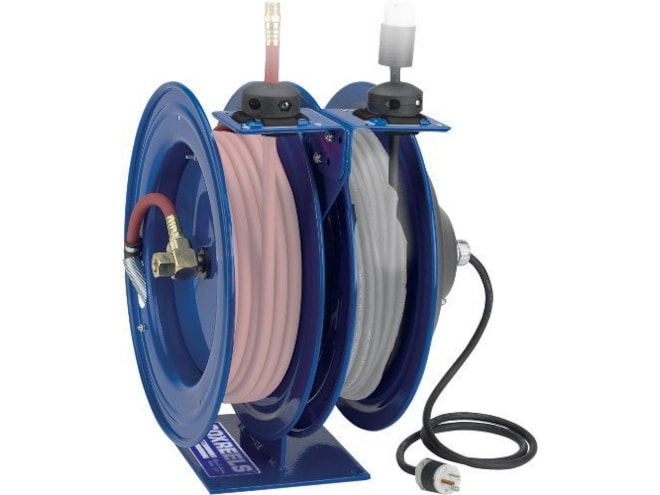

COXREELS C Series "Combination" spring driven air hose/electric cord reels are two reels in one compact assembly. They are perfect for applications that require pneumatic air and an electrical power feed. The single expanded mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations.

Offering:

Compact two reel assembly for air/electric applications, each reel operates independently
External fluid path with dual port melanized 90 degree full-flow NPT swivel inlet
External CPC powder coater steel components cover for simple slip ring routine maintenance
Enclosed factory tuned & matched cartridge-style spring motor

Swivel

External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
Swivel Seals: NITRILE
External CPC™ powder coated steel components cover for simple slip ring routine maintenance
Include 5' lead cable & grounding plug (except on less cord models)

Design & Structure

Compact two reel assembly for air/electric applications, each reel operates independently
Guide arm adjusts to wall, floor & overhead positions
Single expanded, 1/4" steel mounting base for increased stability & space efficiency
One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl & zinc plated ratchet
Multi-position lock ratchet mechanism secures hose/cord at desired length

Signature Features

Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide
